Built for the water ahead

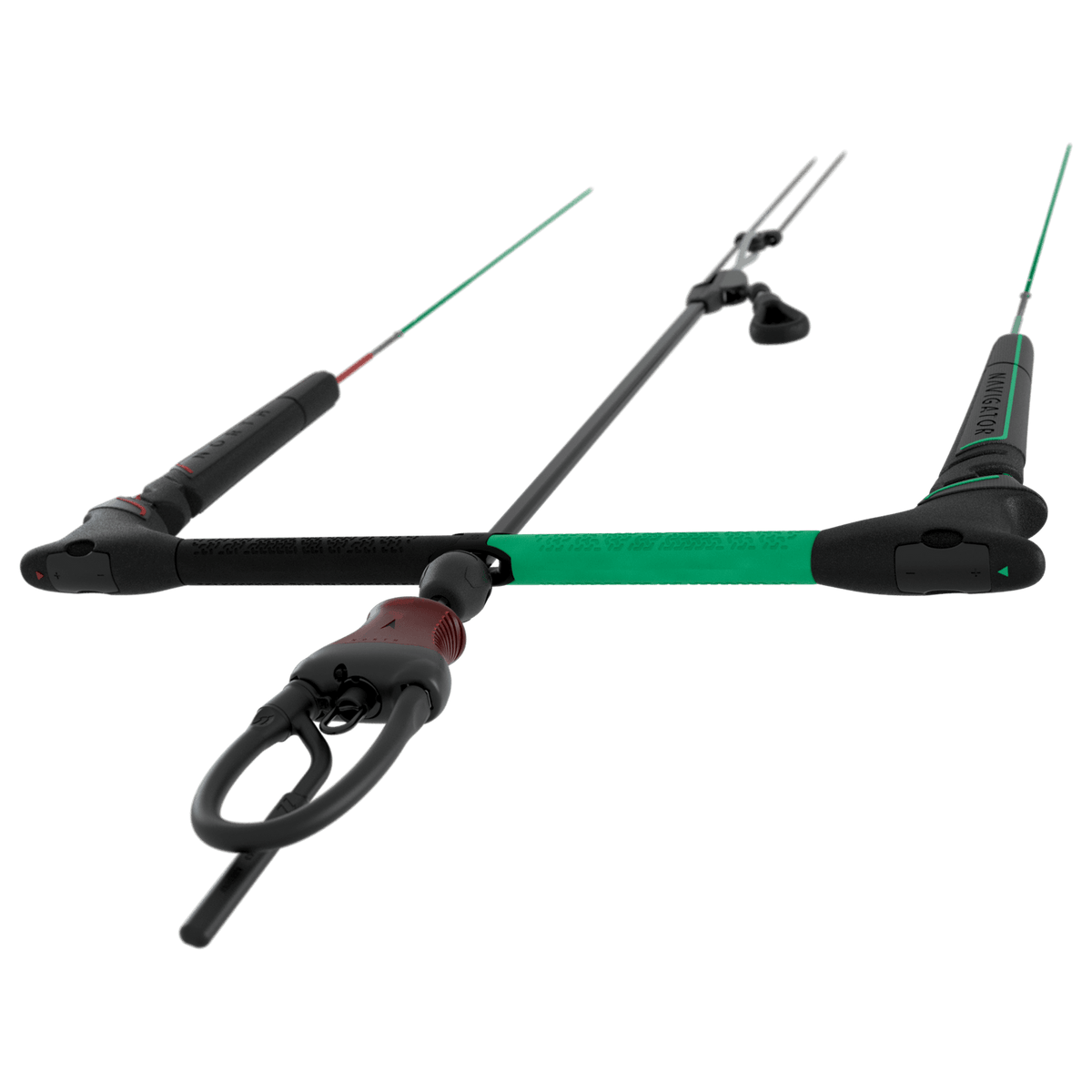

Navigator Control System 2022
Selected color and size
Technology
What makes it work.
Toolless Interloop System
Loops are made from optimised TPU material for flex and durability, with a more rigid freeride security finger to prevent unexpected unhooking. Flexible LockGuard safety ring prevents accidental release of your interloop.
Adjustable bar length
Fine tune the turning speed of your kite. The Navigator is available in three sizes 50-55cm (L), 45-50cm (M) and 38-43cm (S). To extend/retract bar length simply pull out cassettes on the bar-ends, rotate 180 degrees and snap back into place.
Dyneema Depower and Trim Lines
Top quality German-made extremely high wear Dyneema depower and trim line with a special impregnation coating for resistance to abrasion.
Spinning leash attachment ring
Our oval-shaped leash pin ring is elongated for easier fastening of the leash carabiner, and spins to help prevent your landing line from twisting.
PU-covered leader lines
To help prevent line abrasion from uncovered lines against your skin, we've used colour-coded PU tubing covers. The covers also help them remain rigid and out of the way when the flying lines aren't under tension.
Adjustable cleated trim system
Provides industry-proven line-adjustment when needed. The cleat base has been designed with circular geometry for consistent bar spin. In overpowered conditions the cleat allows you to shorten your front lines and remain in a comfortable body position.
Durable covered mainline
Symmetric multibore landing line channel allows the landing line/flying line to pass through without snagging, regardless of the orientation when deploying or reloading. Crafted from a patented material specifically formulated for high abrasion flexible applications.
Lightweight over-molded trim handle
Easy to reach molded trim handle made from Nylon/EVA for strength with a textured soft-touch grip.
100% Dyneema SK99 flying lines
Strong, thinner profile, pre-stretched flying lines mean less parasitic drag and uncompromised direct performance. With 88m of flying lines in the air, you can really feel the difference thinner line creates. Our latest technology, industry-leading, high-load LIROS DC-401 Pro flying lines have extreme stretch resistance and minimal diameter (1.6mm).
Intuitive single-action reload
Our patented and ISO-approved Connect Quick Release (QR) raises the bar in kite control system safety. The red QR handle has been ergonomically designed to fit in your hand comfortably for an industry-standard push away release. All loaded or running surfaces feature highly polished 316 stainless steel and low-friction components. The stretchy, larger diameter bungee inside the QR helps reduce accidental release.
Specifications
Sizes.
| Bar Size | Kite Size |
|---|---|
| S 38-43 | <8m |
| M 45-50 | <11m |
| L 50-55 | >8m |
