Built for the water ahead

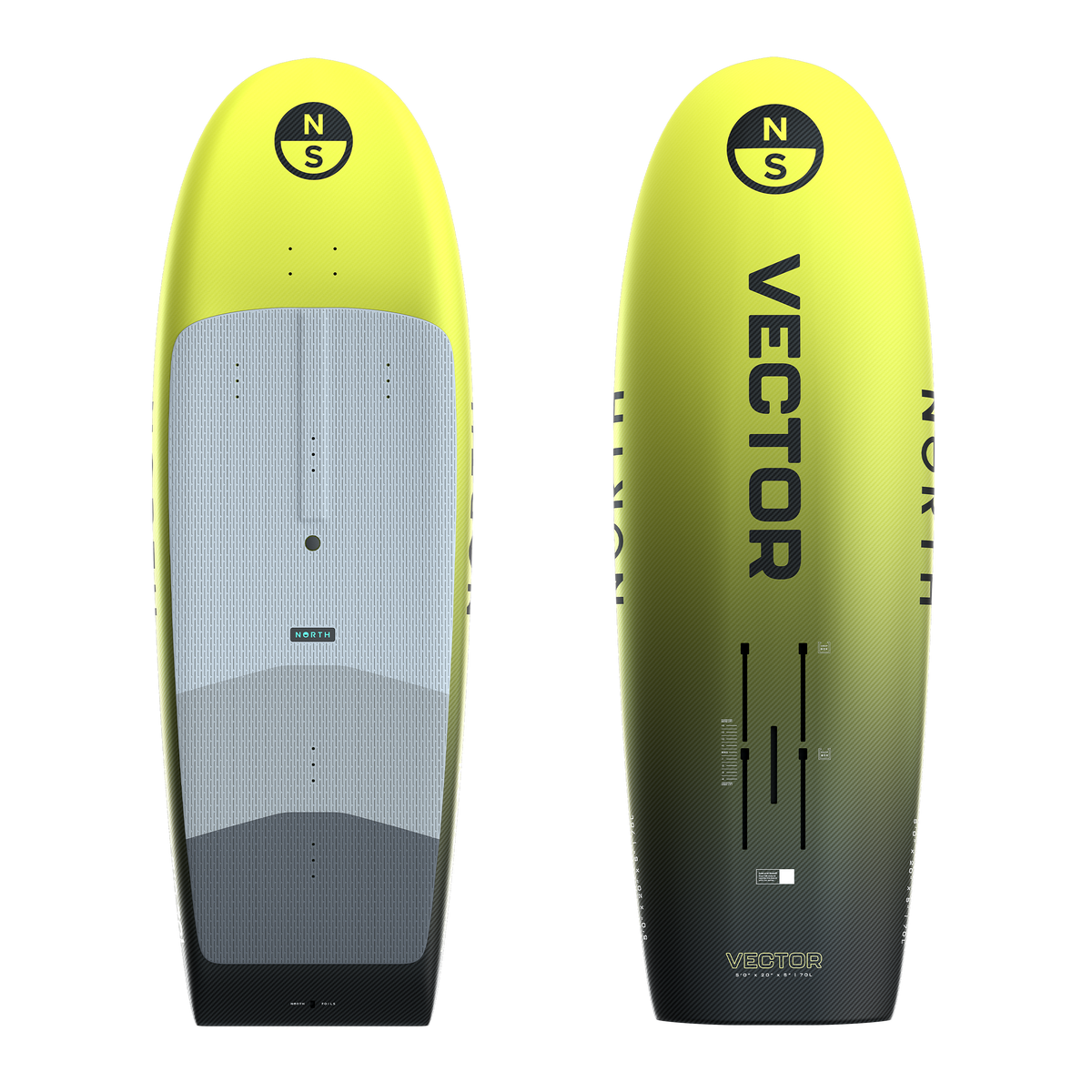

Vector Race Foil Board 2025
The Vector is precisely tuned for sustained flight and top speeds, even in challenging conditions. Light, long and narrow for early lift to foil, its aero-shaped profile reduces drag when heeled over, enabling you to point higher upwind, accelerate out of tacks and climb over competitors at critical moments. Rounded hull and rails shed chop and swell, so you can push harder at every angle without fear of catching an edge, and maintain speed throughout the course. Additionally, the nose-to-tail cross-section shape is optimised to allow wind to flow over and past the board with minimal resistance, further enhancing speed and efficiency. DropBox or Deep Tuttle Box** foil mounting options.
Includes: DropBox Screw Pack (4x M8x30mm, 4x T-Nuts). *Deep TuttleBox screws and washers are not included - requires 13mm washers with a min thickness of 1.5 mm.
- Aero/Hydro Hull Design for reduced drag and additional lift
- Rounded rails prevent catching in chop and swell – so you can push harder
- DropBox (165x90mm) and Tuttlebox Foil Mast Mount options
- Narrow outline with raised bottom shape towards rails lets you heel over more for higher upwind angles
- Sharply defined low-drag tail release edge
- V-Strap Inserts
- Sizing tailored to provide stability and agility for every rider’s weight
Selected color and size
Complete your setup
Pair it into a Build Your Own Bundle — board + kite/wing + one rider item = 10% off automatically.
Technology
What makes it work.
Carbon with Full PVC Wrap
A strong, light and efficient full carbon outer shell sits over a thin layer of high-density PVC foam, which wraps the entire board for maximum total breakage strength and impact resistance.
Lightweight, long and narrow
Engineered to reduce windage for faster flying, the Vector is shaped for speed, fast on the water and fast up onto the foil.
Intuitive Concaved Deck
The highly concaved deck allows more intuitive foot positioning and also acts like a counterbalance, so you don’t feel like you are heeling over as far on the board.
Display mount inserts (76x39mm)
Includes insert mounting points for Sailmon Max or similar performance-trackers with a custom adaptor plate. Fits 4x 6.3x25 Countersunk Self-Tapping Screws.
GORE Waterproof 2-way Vent
The EPS core of a high-volume board is affected by extreme temperature changes. To prevent air pressure build-up a two-way GORE Protective Vent is factory-fitted on the top deck.
Non-abrasive max-traction deckgrip
For a more intuitive and direct connection to your foil, high traction non-abrasive heat-embossed deckpads with tactile and visual stance reference allow fast, easy foot placement.
V-Strap Inserts
Multiple positioning options for each strap allow you to personalise your stance—or go strapless. V-strap inserts accommodate goofy or natural riding. Straps sold separately.
Race bred Aero/Hydro Hull
Engineered aerodynamically to reduce windage, with rounded hull and rails to prevent catching in chop and swell, so you can push harder on the course. Faster speeds, with touchdown recovery.
DropBox and Tuttle box options
The best of both worlds. The Vector has a DropBox track compatible with most foil systems and a carbon Deep Tuttle box, so you can upgrade to a more race-dedicated foil system as you progress.
Includes Foil Mounting Hardware
4x Titanium M8x30mm DropBox screws and T-nuts are supplied with the Vector. You’ll find the screws installed into the 90mm mast tracks.
Specifications
Sizes.
| Size | Volume (L) | Length (ft) | Width (in) | Thick (in) | Intermediate Rider (kg) | Advanced Rider (kg) |
|---|---|---|---|---|---|---|
| 4’7 | 55 | 4’7 | 18 1/4 | 4 5/8 | <55 | <65 |
| 5’0 | 70 | 5’0 | 20 | 5 | <70 | <85 |
| 5’4 | 85 | 5’4 | 21 1/4 | 5 3/8 | <85 | >85 |
Materials
Built from.
- Full-wrap carbon PVC sandwich construction
